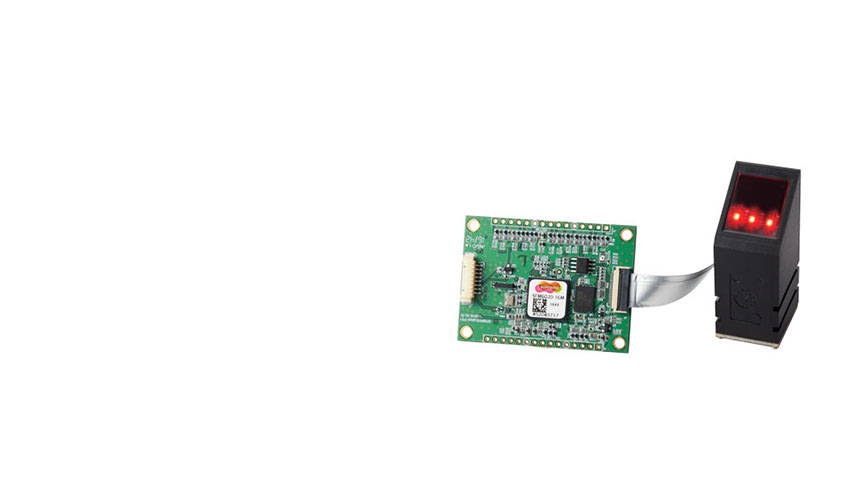

SFM6000 Series
SFM6000 Series represents a great leap forward in biometrics. It boasts a powerful 1.0GHz CPU that empowers the worlds’ fastest authentication and supports multiple interfaces including RS232 and USB2.0 that allow high-speed data transfer. With enlarged template capacity up to 25,000 templates, SFM6000 Series is the perfect solution for a large-scaled yet fast authentication.
Feature Highlights
- Powerful 1.0GHz CPU
- 1:1 verification in 330ms
- Fast Power-on Time
- 8 configurable Digital I/O Ports
- 1:1,000 Identification in 400ms
- Suprema, ISO 19794-2, ANSI 378 Template Options
- Android SDK
- WSQ Image Compression Algorithm certified by FBI
- 256-bit AES Fingerprint Data Encryption
- 8MB and 16MB Flash Memory Option
- RS232, USB2.0 Host Communication
Available Models

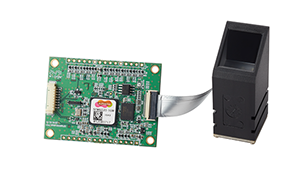

SFM6020-OP

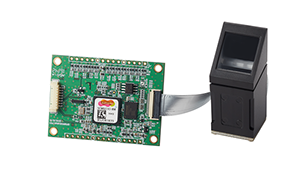

SFM6030-OC
- Optical Sensor
- Robust optical fingerprint sensor
- IP65 rated waterproof front surface
- Solid and scratch-free sensor surface
- Reliable high quality fingerprint image for wet & dry fingers
- Sensor surface optimized to capture the ideal fingerprint image
- Backward compatible to SFM5020-OP
- Optical Sensor
- Robust optical fingerprint sensor
- IP65 rated waterproof front surface
- Solid and scratch-free sensor surface
- Reliable high quality fingerprint image for wet & dry fingers
- Backward compatible to SFM5030-OC

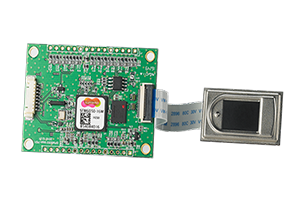

SFM6050-T
SFM6050-T2S
- Capacitive Sensor
- IP65 rated sensor surface with high durability
- Anti-latent fingerprint technology
- Reliable high quality fingerprint image
- Backward compatible to SFM3050-TC1
- Capacitive type sensor
- IP67 rated sensor surface with high durability
- 3 time-stronger abrasion resistance compared to TC2S sensor
- Reliable high quality fingerprint image
- Backward compatible to SFM3050-TC2S
Specification
| Model | Sensor Option | Optical, Capacitive | ||
| Main | CPU | 1GMHz (MIPs) | ||
| Flash Memory | 8MB/16MB | |||
| EER | < 0.08% | |||
| Enrollment
Time (Sensor Dependent) |
<
330ms OP6/OC6 < 360ms T1 < 250ms T2 |
|||
| 1:1
Verification Time (Sensor Dependent) |
<
330ms OP6/OC6 < 360ms T1 < 250ms T2 |
|||
| 1:1000 ID
Time* (Sensor Dependent) |
<
400ms OP6/OC6 < 430ms T1 < 320ms T2 |
|||
| Template Options | Suprema, ISO19794-2, ANSI-378 | |||
| Template
Size (Default: 384 Bytes) |
256
to 384 Bytes (Configurable) |
|||
| Template Capacity | 5,000
@ 8 MB Flash 25,000 @ 16MB Flash |
|||
| Fingerprint Data Encryption | 256-bit AES | |||
| Interface | Host Comm. | Async
Serial: CMOS level upup to 921600 bps USB 2.0(up to 2Mbps) |
||
| External I/O | 8 x Digital I/O | |||
| Hardware | Supply Voltage | 3.3/5 VDC Regulated | ||
| Board Size | 55 x 40 x 8 mm (L x W x H) | |||
| Model | SFM60000 | |||
| SFM6020-OP | SFM6030-OC | SFM6050-T1 | SFM6050-T2S | |
| Sensor Type | Optical | Capacitive | ||
| Sensor Options | OP6 | OC6 | T1 | T2 |
| Resolution (dpi) | 500 | 508 | ||
| Sensing Area (mm) | 16.0 x 19.0 | 16.0 x 18.0 | 12.8 x 18.0 | 10.4 x 14.4 |
| Image Size (px) | 272 x 320 | 288 x 288 | 256 x 360 | 208 x 288 |
| Finger Rotation | +/-90' | |||
| Sensor Dimension (L x W x H) (mm) |
20.5 x 25 x 52 | 21 x 23 x 54 | 20.4 x 27 x 3.5 | |
Sensor
Bracket
Housing
Sensor
Bracket
Access
Control
Time and
Attendance
Door
Lock
Safe
Mobile
POS
Vending
Machine
